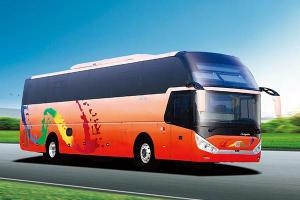

LCK6120A Coach (Compass)

This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coachs safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.

Overall specification overall dimension (mm) 11450 Engine engine model L325 20
overall width (mm) 2550 manufacturer Cummins (China)
overall height (mm) 3850 engine position Front
body inside height (mm) 1940 engine type 6 cylinders in-line, turbocharged with intercooler
wheel base (mm) 5800 max power (kw) 239
front/rear overhang (mm) 2340/3310 max torque (N.M) 1350
approach/departure (º) 9/13 displacement (l) 8.9
first step height (mm) 480 bore/stroke mm 114X144.5
max g.v.w. (kg) 18000 fuel
seats capacity (person) 60+1/ 51+1 steering position
max speed km/h 120
luggage cabin m3 8
Item Standard Optional
Chassis specification manufacturer made in Zhongtong
gear box S6-160, ZF technology, six gears
clutch coil spring, Ø430
front axle 7.5t front axle
rear axle 13t third axle
suspension multi-leaf spring suspension
steering integral assistant power steering
brake dual circuit air braking, drum brake
fuel tank 400L+400L
tyre 315/80R22.5 double coin
battery /dynamo 2×12V/195Ah / 28V /150A+140A
others brake slack auto adjuster, electric retarder, ABS
seat fixing type cloth seatsztzy3072, 3+2 layout 60+1, or 2+2 layout 51+1, driver seat ztzy1050

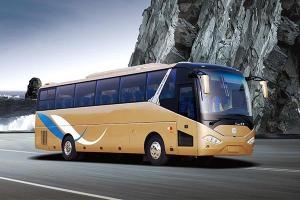

6127H Coach

This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coachs safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.

Bus parameters total length (mm) 12590 Engine model ISLe 375 40
total width (mm) 2550 manufacturer Cummins
total height (mm) 3830 position/fuel real
inner height (mm) 2020 type straight 6 cylinder, medium cooling
wheelbase 6400 max power (kw) 275
front/rear suspension (mm) 2800/3390 max torque (N.M) 1550
approach angle/departure angle (º) 8/7.5 displacement (ml) 8900
height of single step (mm) ≤380 cylinder diameter × stroke (mm) 126X130
max total mass defined by factory (kg) 13370/18000 fuel diesel
rated capacity (person) 51+1+1 emission standard European standard 4
max speed (km/h) 120 Certification ISLe375 40, passed the GOSTR certificate
luggage compartment volume (m3) 9 Inner bus model LCK6127HE
Item Standard configuration Optional configuration
Chassis parameters gearbox Fast 6DS 180T 6 speed transmission ZF 6S 1700BO 6 speed box
clutch SACHS φ430, single plate, dry
front axle independent front axle from Jinben, 6.5T
rear axle Dongfeng Dana, 13T
suspension full airbag (6 airbags, 6 shock absorbers)
steering servo steering gear, steering wheel lock
brake double circuit brake; front/gear disc brake; WABCO ABS/ASR, Eddy current retarder
fuel tank 300L+300L, oil circuit preheating, cold start
tire 295/80R22.5 (Double Coin) Michelin
accumulator/alternator 2×12V/200Ah / 28V/140A+150A
Main components Bus frame full bearing structure, concave floor structure noise absorber for rear bottom panel of the middle gate
decorative A type aviation luggage rack, panel with 3 cigarette lighters B type luggage rack
door and door pump Aluminum door, remote controlled door lock, pneumatic front/middle/back passenger door
side window / windscreen bonded hollow side window; fully sealed; transparent glasses for driver cab and door window; black glass for others; laminated front glass; toughened rear glass; shade curtain
rear view system electrically defrosting rearview mirror; three-lens color LCD screen; monitor (with recording function)
air conditioner 30000Kcal/h (Bitzer compressor)
heater system / defroster SPHEROS 35KW, wall-mounted forced heat sink, 8/4 large-power heat sink, plumbing defroster (air intake from outside)
audiovisual system DVD/hard disc machine; 19-inch LCD screen for front door; 17-inch non collapsible LCD screen for middle door; microphone
lamps front combination light, rear combination light, brake light
door hand-operated side-loading compartment door, aluminum door bathroom and driver restroom (7.6m3)
seat ZTZY3210 luxury seat with adjustable pedal, backrest, and armrest; ZTZY1052 driver seat with airbag; safety belt for each seat, ZTZY2070 tourist guide seat ISRI NTS armrest for driver seat
paint solid color paint metallic paint, pearl paint
others automatic fire extinguishing system for engine compartment; GPS interface; dormer; 2 DS265 ventilators; water tank; LED light; 220V power supply (25-30kw); electronic clock; curtain for side window; 24V converter (220V, 220W); Stainless steel fully enclosed decorative cover for tires carpet; driver s rest compartment; bathroom; cloth curtains; shade curtain; water dispenser
Remark: bus model especially for Russia and Kazakhstan alliance area

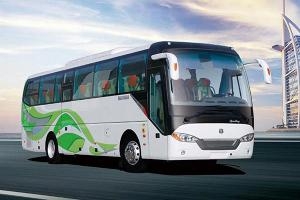

LCK6125A Coach (Compass)

This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coachs safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.

Overall specification overall dimension (mm) 12500 Engine engine model L360 20
overall width (mm) 2550 manufacturer Cummins (China)
overall height (mm) 3850/3710 engine position Front
body inside height (mm) 1940 engine type 6 cylinders in-line, turbocharged with intercooler
wheel base (mm) 5800+1350 max power (kw) 264
front/rear overhang (mm) 2340/3150 max torque (N.M) 1480
approach/departure (º) 10/13 displacement (l) 8.9
first step height (mm) 400 bore/stroke mm 114X144.5
max g.v.w.kg 21500
seats capacity (person) 61+1/ 70+1
max speed (km/h) 120
luggage cabin (m3) 10.4
Items Standard Optional
Chassis specification manufacturer made in Zhongtong
gear box S6-160, ZF technology, six gears
clutch coil spring, Ø430
front axle 7.5t front axle
rear axle 13t rear axle
third axle 5t third axle
suspension multi-leaf spring suspension
steering integral assistant power steering
brake dual circuit air braking, drum brake
fuel tank 400L+400L
tyre 315/80R22.5
battery /dynamo 2×12V/195Ah / 28V /150A+140A
others brake slack auto adjuster, electric retarder, ABS
seat adjustable seats, ZTZY3210 2+2 layout 61+1; fixed seats, ZTZY3072, 3+2 layout 70+1; driver seat ZTZY1050

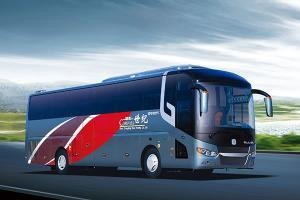

6137H Coach

This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coachs safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.

Bus parameter total length (mm) 13700 Engine model ISME420 30/L375 20/ OM 457LA
total width (mm) 2540 manufacturer Xian Cummins/Dongfeng Cummins / Mercedes-Benz
total height (mm) 3885/3780 (no air conditioner) position/fuel Xian Cummins/Dongfeng Cummins / Mercedes-Benz
inner height (mm) 2020 type straight 6-cylinder, water cooling, intercooling
wheelbase (mm) 6200/1600 max power (kw) 306/276/260
front/rear suspension (mm) 2585/3415 max torque (N.M) 2010/1480/1750
approach angle/departure angle (º) 10.3/9.7 displacement (ml) 10800/8900/11970
height of single step (mm) 480 cylinder diameter × stroke (mm) 125×147/114X144.5/128*155
max total mass defined by factory (kg) 22000 emission standard
rated capacity (person) 59+1+1+1 max speed (km/h) 120
Luggage compartment volume (m3) 9 (through type)
Item Standard configuration Optional configuration
Chassis parameter chassis LCK6133RA/Zhongtong
gearbox Fast 6DS180T 6 speed transmission · Benz GO210-6E (Benz engine, hydrodynamic retarder)
clutch SACHS φ430, single plate, dry, diaphragm spring, imported clutch
front axle Dongfeng Dana, 6.5T Benz F7.5, disc brake
rear axle Dongfeng Dana, 13T (precision grinding gear)
third axle Dongfeng Dana, 7.5T Benz R440, 13T rear axle, disc brake
suspension air suspension with 8 airbags, imported shock absorber
steering integral power steering gear ZF8098
brake disc brake, WABCO ABS/ASR, retarder
fuel tank 600L 300L×2
tire 12R22.5 (Double Coin) +1 spare tire Aluminum tire315/80R22.5, Double Coin/ Michelin
accumulator/alternator 2×12V/200Ah / 28V/140A+140A Prestolite 150A engine from Benz
seat ZTZY3210 luxury seat; lateral movement; adjustable pedal; ZTZY1050 driver seat; ZTZY2020 tourist guide seat adjustable pedal; ZTZY3300 commercial seat
